Product Summary
The TL074CDT is a high speed J–FET input quad operational amplifier incorporating well matched, high voltage J–FET and bipolar transistor in a monolithic integrated circuit. The TL074CDT features high slew rates, low input bias and offset currents, and low offset voltage temperature coefficient.
Parametrics
TL074CDT absolute maxing ratings: (1)VCC Supply voltage: ±18 V; (2)Vi Input Voltage: ±15 V; (3)Vid Differential Input Voltage: ±30 V; (4)Ptot Power Dissipation: 680mW; (5)Output Short-circuit Duration - note 4); (6)Toper Operating Free-air Temperature Range: 0 to +70℃; (7)Tstg Storage Temperature Range: -65 to +150℃.
Features
TL074CDT features: (1)wide common-mode (up to vcc+) and differential voltage range; (2)low input bias and offset current; (3)low noise en = 15nv/√hz￣ (typ); (4)output short-circuit protection; (5)high input impedance j-et input stage; (6)low harmonic distortion : 0.01% (typ); (7)internal frequency compensation; (8)latch up free operation; (9)high slew rate : 13v/μs (typ).

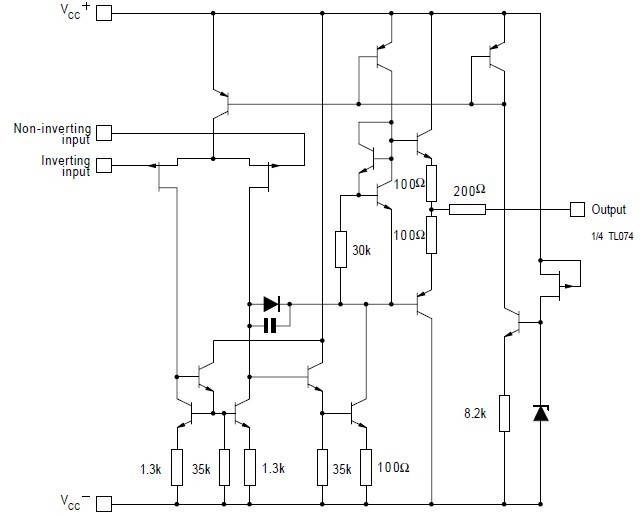

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TL074CDT |
STMicroelectronics |
Operational Amplifiers - Op Amps Quad Low Noise JFET |
Data Sheet |
|
|
||||||||||||
