Product Summary

The TL084CDT is a high-speed JFET input quad operational amplifier incorporating well matched, high voltage JFET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low input bias and offset currents, and low offset voltage temperature coefficient.

Parametrics

TL084CDT absolute maximum ratings: (1)VCC Supply voltage:±18 V; (2)Vi Input voltage:±15 V; (3)Vid Differential input voltage:±30 V; (4)Ptot Power dissipation:680 mW; (5)Output short-circuit duration:Infinite; (6)Toper Operating free-air temperature range:-55 to +125°C; (7)Tstg Storage temperature range: -65 to +150 °C; (8)HBM: human body model:1000v; (9)MM: machine model:150 V; (10)CDM: charged device model: 1500V.

Features

TL084CDT features: (1)Wide common-mode (up to VCC+) and differential voltage range; (2)Low input bias and offset current; (3)Output short-circuit protection; (4)High input impedance JFET input stage; (5)Internal frequency compensation; (6)Latch up free operation; (7)High slew rate: 16V/μs (typ).

Diagrams

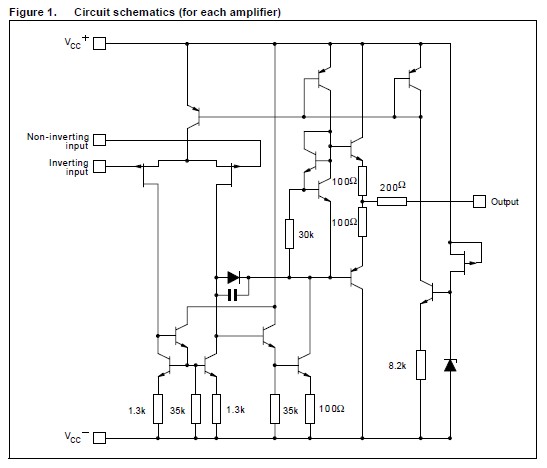

TL084CDT pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TL084CDT
TL084CDT
STMicroelectronics
Operational Amplifiers - Op Amps Quad Gen Purp JFET
Data Sheet
0-1: $0.29
1-10: $0.22
10-100: $0.19
100-250: $0.16
