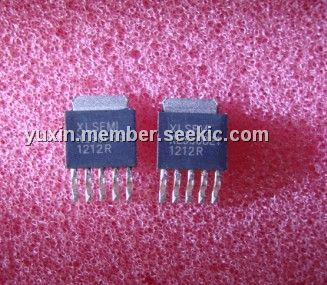

Product Summary

The XL6008E1212R is a wide input range, current mode, DC/DC converter which is capable of generating either positive or negative output voltages. It can be configured as either a boost, flyback, SEPIC or inverting converter. The XL6008E1212R built in N-channel power MOSFET and fixed frequency oscillator, current-mode architecture results in stable operation over a wide range of supply and output voltages. The XL6008E1212R regulator is special design for portable electronic equipment. Applications are (1)automotive and industrial boost / buck-boost / inverting converters; (2)portable electronic equipment.

Parametrics

XL6008E1212R absolute maximum ratings: (1)Input Voltage Vin: -0.3 to 36 V; (2)Feedback Pin Voltage VFB: -0.3 to Vin V; (3)EN Pin Voltage VEN: -0.3 to Vin V; (4)Output Switch Pin Voltage VOutput: -0.3 to 60 V; (5)Power Dissipation PD: Internally limited mW; (6)Operating Junction Temperature TJ: -40 to 125 ºC; (7)Storage Temperature TSTG: -65 to 150 ºC; (8)Lead Temperature (Soldering, 10 sec)TLEAD: 260 ºC; (9)ESD (HBM): >2000 V.

Features

XL6008E1212R features: (1)Wide 3.6V to 32V Input Voltage Range; (2)Positive or Negative Output Voltage Programming with a Single Feedback Pin; (3)Current Mode Control Provides Excellent Transient Response; (4)1.25V reference adjustable version; (5)Fixed 400KHz Switching Frequency; (6)Maximum 3A Switching Current; (7)SW PIN Built iOver Voltage Protection; (8)Excellent line and load regulation; (9)EN PIN TTL shutdowcapability; (10)Internal Optimize Power MOSFET; (11)High efficiency up to 92%; (12)Built iFrequency Compensation; (13)Built iSoft-Start Function; (14)Built iThermal ShutdowFunction; (15)Built iCurrent Limit Function; (16)Available iTO252-5L package.

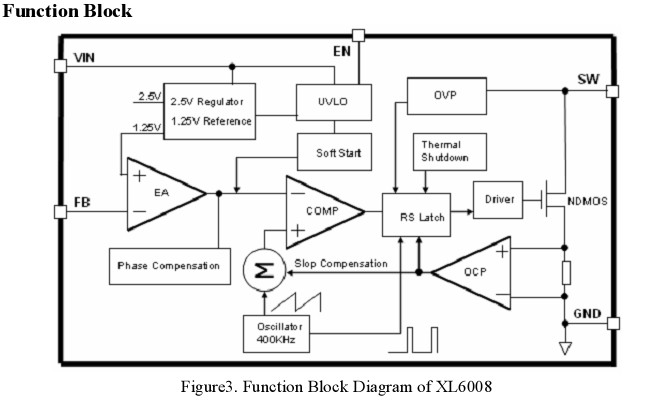

Diagrams

XL6008E1212R pin connection
