Product Summary

The TL062CD is a JFET input operational amplifier. The TL062CD is designed for low power applications. The TL062CD feature high input impedance, low input bias current and low input offset current. Advanced design techniques allow for higher slew rates, gain bandwidth products and output swing. The commercial and vehicular devices are available in Plastic dual in–line and SOIC packages.

Parametrics

TL062CD absolute maximum ratings: (1)Supply Voltage (from VCC to VEE)VS: +36 V; (2)Input Differential Voltage Range VIDR: ±30 V; (3)Input Voltage Range VIR: ±15 V; (4)Operating Junction Temperature TJ: +150 °C; (5)Storage Temperature Range Tstg: –60 to +150 °C; (6)Common Mode Rejection (RS = 50 W, VCM = VICR min, VO = 0 V, TA = 25°C)CMR: 70 to 84dB; (7)Power Supply Current (each amplifier)(No Load, VO = 0 V, TA = 25°C)ID: 200 to 250 μA; (8)Total Power Dissipation (each amplifier)(No Load, VO = 0 V, TA = 25°C)PD: 6.0 to 7.5 mW.

Features

TL062CD features: (1)Low Supply Current: 200 mA/Amplifier; (2)Low Input Bias Current: 5.0 pA; (3)High Gain Bandwidth: 2.0 MHz; (4)High Slew Rate: 6.0 V/ms; (5)High Input Impedance: 1012 W; (6)Large Output Voltage Swing: ±14 V; (7)Output Short Circuit Protection.

Diagrams

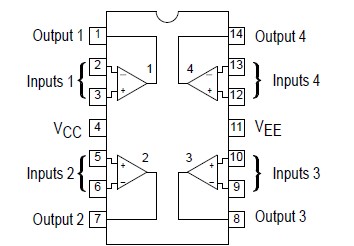

TL062CD pin connection
